The buying verdict

The 512GB M5 Ultra can hold a complete GLM-5.2 Q4 GGUF by file size; the 128GB M5 Max cannot hold even the listed IQ2 artifact. That is only a capacity gate. As of August 25, 2026, no M5 Ultra had shipped, stable MLX-LM could not load GLM-5.2’s IndexShare layout, LM Studio listed GLM-5.2 as cloud-only, and Apple’s LLM benchmark did not name the model. Do not preorder or buy this Mac solely for GLM-5.2. Wait for the 512GB configuration, then require a pinned llama.cpp canary to pass load, quality, context, speed, thermal, failure, and rollback checks.

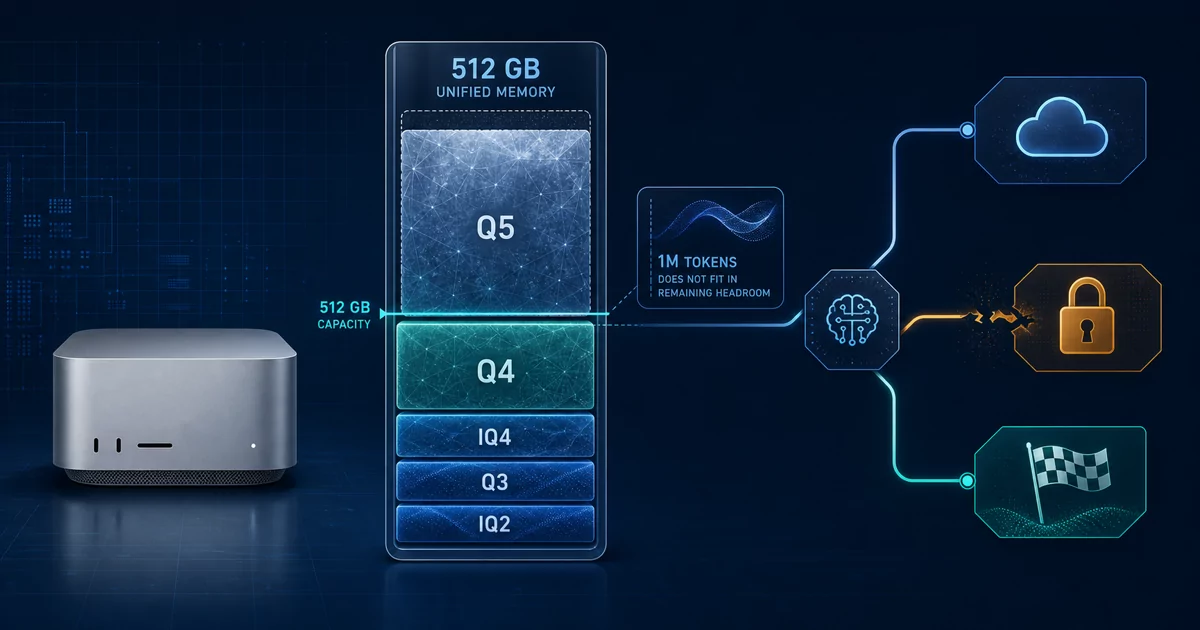

Original editorial illustration. It visualizes capacity and software gates; it is not Apple artwork, an application screenshot, a memory capture, or a GLM-5.2 benchmark.

Apple’s new M5 Ultra Mac Studio sounds almost purpose-built for GLM-5.2: up to 512GB of unified memory, 1.2TB/s of memory bandwidth, and an 80-core GPU. The model is open-weight, uses about 40 billion active parameters per token, and has a one-million-token context window. Put those numbers together and the answer can look like an easy yes.

It is not that simple. GLM-5.2 has roughly 753 billion total parameters. Its router activates only some experts for each token, but a general-purpose runtime still needs the complete expert set available. The current Q4 artifact is 465.826GB before cache and runtime allocations. More importantly, a machine and a model file do nothing until one exact software build implements GLM-5.2’s glm_moe_dsa architecture and its IndexShare behavior correctly.

This audit pins the official GLM-5.2 checkpoint at b4734de4…, the Unsloth GGUF tree at abc55e725…, and the llama.cpp GLM-5.2 support merge at 88bfee142…. The machine-readable capacity receipt recalculates every size and context boundary below. We made zero model calls, zero Mac runs, and zero GPU runs because the announced hardware had not shipped.

In this guide

1. Make the purchase decision first
2. Separate the M5 Max from the 512GB M5 Ultra
3. Use exact GLM-5.2 artifact bytes
4. See why Q4 does not clear the 1M gate
5. Do not confuse 40B active with 40B stored
6. Audit the Mac runtime before the hardware
7. Use llama.cpp only as a canary candidate
8. Reject stable MLX-LM for now
9. Do not transfer Apple’s LM Studio result
10. Treat four-Mac clustering as unverified
11. Run a post-shipment acceptance test
12. Choose a route by the job you need done
13. Frequently asked questions
14. Sources and method

Make the purchase decision first

The shortest honest answer is a five-row gate:

Candidate	Weight capacity	Current software evidence	Decision on August 25
M5 Max, up to 128GB	No listed complete GGUF fits	Irrelevant after capacity failure	Reject for full GLM-5.2
M5 Ultra 512GB + Q5	Q5 is 560.830GB	Irrelevant after capacity failure	Reject
M5 Ultra 512GB + Q4	Q4 is 465.826GB; narrow gross headroom	llama.cpp source support exists; no M5 Ultra run	Post-shipment short-context canary only
M5 Ultra 512GB + IQ4 or Q3	More gross memory remains	Same runtime uncertainty plus greater quantization risk	Compare against a quality control before adoption
M5 Ultra 512GB + LM Studio	GLM-5.2 catalog route is cloud, not local	Apple’s benchmark model is unnamed	Do not call this local GLM-5.2 evidence

There are three independent yes/no questions:

1. Do the weights fit? Only Q4 and lower from the listed artifacts clear a conservative 512GB file-size gate.
2. Does the runtime implement this model? Current llama.cpp source does; stable MLX-LM does not yet handle GLM-5.2 IndexShare correctly.
3. Is the result useful? There is no M5 Ultra GLM-5.2 measurement yet, so quality, prompt processing, decode speed, thermals, and stability are open.

Passing question one does not imply questions two or three. Capacity eligibility is not a purchase recommendation.

Separate the M5 Max from the 512GB M5 Ultra

Apple’s August 25 Mac Studio announcement publishes two very different ceilings:

New Mac Studio family	Maximum unified memory	Memory bandwidth	GLM-5.2 capacity implication
M5 Max	128GB	614GB/s	Cannot hold the 238.578GB IQ2 artifact, even before overhead
M5 Ultra	512GB	1.2TB/s	Can hold Q4 or lower by repository bytes; Q5 still exceeds capacity

The chip name is not enough. A lower-memory M5 Ultra configuration may be fast and still fail the basic model-size gate. The exact memory option belongs in every result, receipt, and buying comparison.

Availability also blocks a present-tense performance claim. Apple says the new Mac Studio begins arriving on September 22, 2026, while the 512GB option is coming in late October. M5 Ultra starts at US$5,499, but the release does not say that the starting configuration includes 512GB. Do not use the starting price as the price of the configuration this article requires.

The safe decision today is therefore a wait, not a forecast. The hardware specification is public; the necessary machine is not yet available for an independent GLM-5.2 run.

Use exact GLM-5.2 artifact bytes

The table below sums every file inside each pinned Unsloth quantization directory. It does not use a rounded parameter count or a community estimate. For the comparison ceiling, we treat Apple’s literal 512GB label conservatively as 512,000,000,000 bytes. Apple has not supplied an allocatable-process-memory receipt for this unreleased configuration; the live machine must replace that convention later.

GLM-5.2 GGUF artifact	Exact repository size	Binary size	Gross headroom vs 512GB	Weight-only result
UD-Q5_K_M	560.830GB	522.314GiB	−48.830GB	Does not fit
UD-Q4_K_M	465.826GB	433.834GiB	46.174GB	Fits narrowly
UD-IQ4_XS	365.313GB	340.224GiB	146.687GB	Fits
UD-Q3_K_M	342.736GB	319.197GiB	169.264GB	Fits
UD-IQ2_M	238.578GB	222.193GiB	273.422GB	Fits, with extreme quantization risk

Gross headroom is deliberately not called free memory. It excludes macOS, the model loader, graph and Metal buffers, quantization metadata, sparse index state, KV cache, application memory, file mapping behavior, fragmentation, and any safety reserve. The repository file size may also differ from peak resident memory while loading.

Lower precision is not free capacity. Q3, IQ4, and IQ2 are different model artifacts whose coding accuracy, tool-call structure, long-horizon stability, and instruction following can differ from Q4 or the official checkpoint. A successful load proves neither quality nor useful speed.

For the broader BF16, FP8, server, API, and SSD-offload choices, use the complete GLM-5.2 local hardware guide. This page owns only the M5 Ultra buying decision.

See why Q4 does not clear the 1M gate

GLM-5.2’s pinned configuration declares 78 decoder layers, an MLA latent rank of 512, a 64-dimensional RoPE key component, and 1,048,576 maximum positions. A transparent latent-state estimate for one sequence is:

GLM-5.2 latent-cache capacity estimate

78 layers × (512 + 64) cached values × 1,048,576 tokens
× bytes per cached value

That produces two useful planning rows:

Cached-value assumption	Estimated full-context latent state	What it excludes
1 byte	47.110GB / 43.875GiB	Index data, runtime buffers, allocator reserve, OS, extra sequences
2 bytes	94.221GB / 87.750GiB	The same exclusions

Q4 plus the one-byte estimate is:

Why Q4 misses the conservative one-million-token gate

465.825525088 GB weights + 47.110422528 GB latent cache
= 512.935947616 GB

That already exceeds the conservative 512GB ceiling by 0.936GB, before macOS or the runtime. At two bytes per value, the combined estimate is much larger. This does not mean Q4 cannot run. It means Q4 should begin with a shorter context, such as 32K, and expand only after measured memory and task value justify it.

IQ4 has a different capacity envelope. Its 365.313GB weights plus the two-byte full-context estimate total 459.534GB, leaving 52.466GB before all other allocations. That is an on-paper capacity result, not proof that the process will load, that the cache layout matches this estimate, or that IQ4 quality is acceptable. Runtime implementations can pack or allocate state differently.

The one-million-token label is a maximum architecture capability, not a free default. Concurrency approximately multiplies sequence-state demand, and long prefill also consumes time. A purchase test should ask whether 32K or 128K solves the actual job before chasing 1M.

Do not confuse 40B active with 40B stored

The official GLM-5.2 model card describes a roughly 753B-parameter model with about 40B active parameters per token. Those numbers answer different questions:

• Active parameters approximate how much expert computation a token uses.
• Total parameters determine how much expert state the runtime must make available to satisfy future routing choices.

GLM-5.2 has 256 routed experts and selects eight per token. The next token can select a different set. Unless the runtime deliberately streams or offloads experts, all experts must be resident somewhere. Even with offload, the total capacity remains; only its location changes, usually at a latency cost.

This is why “40B active” does not turn GLM-5.2 into a 40B desktop model. MoE reduces compute more directly than it reduces full-model storage.

Audit the Mac runtime before the hardware

The current runtime matrix is less mature than the hardware headline:

Runtime or app	Checked boundary	GLM-5.2 local status	Safe conclusion
llama.cpp	Source at and after 88bfee142…	IndexShare/indexer support merged	Eligible for a pinned canary; no M5 Ultra performance claim
MLX-LM	Stable v0.31.3	GLM-5.2 IndexShare load issue open; fix PR unmerged	Reject the stable path today
LM Studio	Public model catalog, August 25	GLM-5.2 listed as Cloud/Bionic	Do not treat the catalog route as local inference
Core AI / Core ML	Apple launch material	No GLM-5.2 conversion or validation path published	Unverified

This table is intentionally versioned. A future MLX-LM release may change the answer. That future release must be pinned and tested; it should not be pre-credited to the current product.

Use llama.cpp only as a canary candidate

llama.cpp PR 25407 merged on July 24. It adds the GLM-5.2 indexer path, including the model’s important IndexShare difference: full layers compute sparse top-K positions and shared layers reuse the preceding indexer result. The merge closes a real modeling gap, so llama.cpp is the strongest current local candidate for this Mac.

It is not a finished M5 Ultra result. The PR discussion includes contributor correctness and performance work on other hardware and notes that the correct indexer path can be slower than the earlier incomplete path. It does not provide the exact M5 Ultra, 512GB, GLM-5.2 quantization, context, and token-rate cell required here.

Source support is not a speed, quality, or memory guarantee.

After the hardware ships, freeze a manifest before downloading hundreds of gigabytes:

Required GLM-5.2 Mac canary manifest

hardware_model      = M5 Ultra Mac Studio
unified_memory      = 512 GB option (record actual bytes available)
macos_build         = exact build
runtime             = exact llama.cpp commit or package digest
gguf_repository     = unsloth/GLM-5.2-GGUF
gguf_revision       = abc55e72527792c6e77069c99b4cb7de16fa9f23
quantization        = one exact directory, beginning with a capacity-safe arm
initial_context     = 32768
control_output_set  = immutable prompts, expected fields, and acceptance rules

Do not start with Q4 at 1M context. Start with one bounded prompt corpus and a 32K cache. Record cold and warm load time, peak memory, prompt tokens per second, decode tokens per second, exact output, process exits, and cleanup. Only then add 128K as a separate arm.

Reject stable MLX-LM for now

MLX is attractive because Apple designed it for Apple silicon. Generic platform fit is not model support.

MLX-LM issue 1418 remained open at this audit. It documents a GLM-5.2 load failure: stable code expects an indexer on every layer, while the checkpoint stores indexers on 21 full layers and lets 57 shared layers reuse them. The loader consequently reports missing parameters.

PR 1419 proposes IndexShare and related inference changes, but it was still open and unmerged. Running an experimental branch may be appropriate for a developer investigation after the Mac arrives. It is not appropriate evidence for spending thousands of dollars today. The promotion gate is a released or immutable build plus an independent canary, not merely an open pull request.

An unmerged branch is not a product-support guarantee.

Do not transfer Apple’s LM Studio result

Apple reports that M5 Ultra delivers up to 4x faster LLM prompt processing in LM Studio than M3 Ultra. The same announcement reports up to 9.8x versus M1 Ultra. These are Apple measurements, and the footnote says testing occurred in July 2026.

The transfer problem is decisive:

• Apple does not name the tested model or quantization on the announcement.
• It does not publish context length, batch size, prompt/decode split beyond the prompt-processing label, or absolute tokens per second there.
• LM Studio’s GLM-5.2 page currently says the model is available through LM Studio Bionic as a cloud model, with a 256K cloud context configuration. It is not labeled as a local download.

Therefore, “M5 Ultra is 4x faster in LM Studio” and “M5 Ultra runs local GLM-5.2 four times faster” are not equivalent statements. The second claim is unsupported.

The new Neural Accelerators create the same boundary. A runtime must actually route the relevant GLM-5.2 operations through them. A chip block on a spec sheet is not evidence that current llama.cpp or an unmerged MLX branch uses it for this model.

Treat four-Mac clustering as unverified

Apple also says Thunderbolt 5 and RDMA can combine multiple Mac Studio systems into a shared memory pool, and that four systems provide up to 3x faster distributed AI inference than one. That is interesting infrastructure evidence, not a GLM-5.2 deployment recipe.

The announcement does not name GLM-5.2, a compatible distributed runtime, quantization, topology, context length, absolute throughput, interconnect traffic, synchronization cost, or failure behavior. Four 512GB systems would also multiply purchase price, storage, power, and operational complexity.

Do not use clustering to rescue an unproven single-node path. First prove that one exact runtime and artifact are correct on one system. Then treat clustering as a separate distributed test with its own parity and failure gates.

Run a post-shipment acceptance test

The canary should answer “useful for my work,” not merely “generated text.” Keep every arm identical except the one variable being tested.

Gate	Required evidence	Stop condition
Capacity	Actual allocatable memory, peak resident bytes, loader reserve, no swap emergency	Any failed allocation, memory-pressure kill, or unexplained growth
Correctness	Fixed coding, retrieval, tool JSON, stop-token, and long-run tasks against a control	Missing fields, malformed tools, repeated output, or task regression
Context	32K first; 128K only after pass; exact prompt and output tokens	Retrieval failure, excessive prefill, instability, or unsafe headroom
Performance	Separate prompt-processing and decode rates, p50/p90 across repeated runs	Workload-specific latency or throughput target missed
Endurance	Temperature, power, throttling, memory, and output over sustained runs	Thermal throttling or drift that invalidates short measurements
Operations	Cancel, crash, restart, file integrity, and rollback rehearsal	Ambiguous process state or rollback failure

Compare Q4 with at least one capacity-safer quantization. Q4 may preserve more quality but restrict context and runtime reserve. IQ4 or Q3 may improve headroom but regress the tasks that motivated GLM-5.2. The correct answer is an accepted-output rate under the real job, not the largest file that loads.

Establish a separate reference before buying

For a high-stakes private or coding workflow, create a result set on a documented hosted or supported multi-GPU route before evaluating the Mac. That reference does not make two runtimes numerically identical; it gives the local quantizations something task-specific to preserve.

Validate GLM-5.2 before purchasing a workstation

Use rented accelerators only to build a bounded output and serving control before a hardware purchase. Confirm the current accelerator topology, memory, storage, networking, image, checkpoint, availability, and live price; a cloud run is not proof of Apple-silicon performance.

Check current GPU capacity on RunPod →

Affiliate disclosure: This is an affiliate link and a referral link. GLM52.ai may receive a commission or referral credit after qualifying usage at no added charge from us. The relationship does not change the Mac capacity arithmetic, runtime blockers, or the requirement to verify the exact rented topology and price.

Choose a route by the job you need done

You need GLM-5.2 now

Use a hosted API or a documented accelerator deployment. The new 512GB Mac is not shipping yet, so it cannot satisfy a present operational deadline. Our GLM-5.2 access-route guide separates subscription, metered API, and self-hosting decisions.

You already planned to buy the Mac for other work

Treat GLM-5.2 as a future experiment, not the purchase justification. Wait for the 512GB option, verify its real configuration and price, and run the canary inside a return or evaluation window if the seller’s terms allow it.

Privacy is the hard requirement

Local inference can keep prompt data on the machine, but privacy does not cure runtime bugs or quantization regressions. Confirm that the entire workflow—UI, telemetry, model download, tools, retrieval, logs, backups, and crash reports— meets the privacy boundary. A cloud-labeled LM Studio route is not local merely because the app runs on a Mac.

One-million-token context is the hard requirement

Reject Q4 under the conservative capacity estimate. Evaluate a smaller quantization only after measuring quality, or use a supported server route with explicit 1M context validation. Do not trade away task correctness just to make the context allocation fit.

Interactive decode speed is the hard requirement

Wait for absolute, reproducible M5 Ultra measurements on the exact artifact. Memory bandwidth is relevant, but MoE routing, Metal kernels, indexer work, cache layout, prompt length, and thermal behavior all affect the result. A vendor multiplier without an absolute GLM-5.2 cell cannot set a latency budget.

Frequently asked questions

Can the M5 Max Mac Studio run the complete GLM-5.2 model?

Not with the listed GGUF artifacts fully resident. M5 Max tops out at 128GB, while the smallest audited complete artifact, UD-IQ2_M, is 238.578GB before runtime overhead. Remote API use is still possible because the model then runs elsewhere.

Will the 512GB M5 Ultra load GLM-5.2 Q4?

The 465.826GB Q4 files fit inside a conservative 512GB weight-only ceiling. That is not a verified load result. Actual allocatable memory, file mapping, runtime buffers, macOS, and cache must be measured on the shipping system.

Can Q4 use the full one-million-token context?

Not under this audit’s conservative capacity model. Q4 plus even the one-byte latent-cache estimate totals 512.936GB before every other allocation. Begin at 32K and expand only after measuring both memory and task value.

Does MLX-LM support GLM-5.2 on Apple silicon?

The stable v0.31.3 path was blocked at the check time by GLM-5.2’s IndexShare layout. Issue 1418 and the proposed PR 1419 were still open. Recheck a future released build; do not assume the open PR is present.

Can I download GLM-5.2 in LM Studio and run it locally?

LM Studio’s current GLM-5.2 catalog page lists it as a Cloud/Bionic model, not a local download. A future catalog or runtime release could change that, so verify the rendered label and exact backend rather than relying on the app name.

Does llama.cpp support GLM-5.2 now?

Current source includes the GLM-5.2 indexer/IndexShare implementation merged in commit 88bfee142…. That makes it a valid canary candidate. It does not supply an M5 Ultra token rate, quality guarantee, or memory guarantee.

Will four Mac Studio systems make GLM-5.2 three times faster?

Apple reports an up-to-3x four-system inference result, but the announcement does not identify GLM-5.2 or publish a compatible distributed recipe. Treat it as a vendor hardware claim, not a model-specific forecast.

Is the 512GB M5 Ultra worth buying for GLM-5.2?

There is not enough evidence yet. It is capacity-eligible for Q4 and lower, but the required configuration has not shipped and no exact GLM-5.2 result exists. Buy only after a post-shipment canary meets your quality, context, speed, privacy, endurance, and operations thresholds.

Sources and method

This page began with the AI HOT Mac Studio item as an untrusted discovery lead. Every technical and product claim was checked against a relevant primary source:

• Apple’s M5 Max and M5 Ultra Mac Studio announcement for memory, bandwidth, availability, starting price, LM Studio, and cluster claims.
• Apple’s M5 Ultra chip announcement for the quad-die, inter-die, and framework statements.
• Z.ai’s official GLM-5.2 model card for architecture, model scale, IndexShare, context, and supported serving families.
• The pinned Unsloth GLM-5.2 GGUF tree for exact split-file bytes.
• llama.cpp PR 25407, MLX-LM issue 1418, and MLX-LM PR 1419 for the dated runtime-support boundary.
• LM Studio’s GLM-5.2 catalog page for the current cloud-only product label.

The public audit receipt contains 13 hashed source responses, exact checkpoint revisions, file-size sums, context arithmetic, runtime states, AI HOT classifications, the search-supply decision, and the related-page SEO baseline. The audit was conducted on August 25, 2026.

No M5 Ultra hardware, GLM-5.2 weights, private APIs, or paid model calls were used. We did not reproduce contributor benchmarks. Apple results remain labeled as vendor-reported, and all local performance remains pending shipping hardware and a pinned canary.
